Industrial Lightweight Conveyor Belt
Manufacturer of PVC, PU and PVK conveyor belt materials with custom fabrication services.
We supply belt materials and fabricated belts only. We do not provide complete conveyor systems.
Lightweight Conveyor Belt Material Types
Select from PVC, TPU, PVK and specialty belt materials designed for various structural and operating requirements.

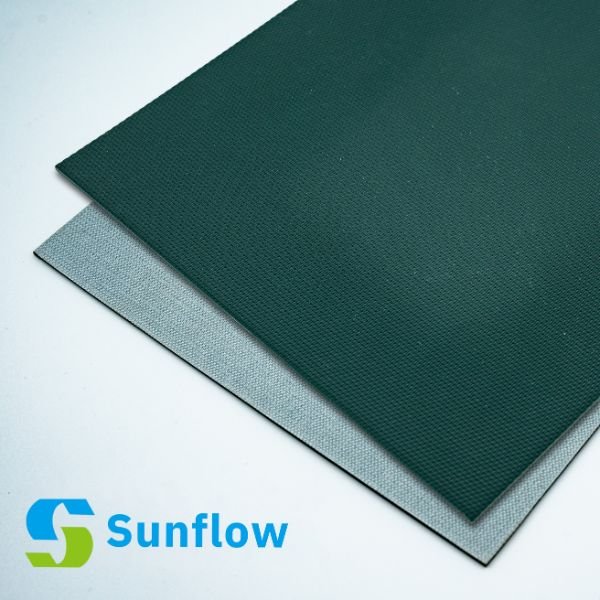

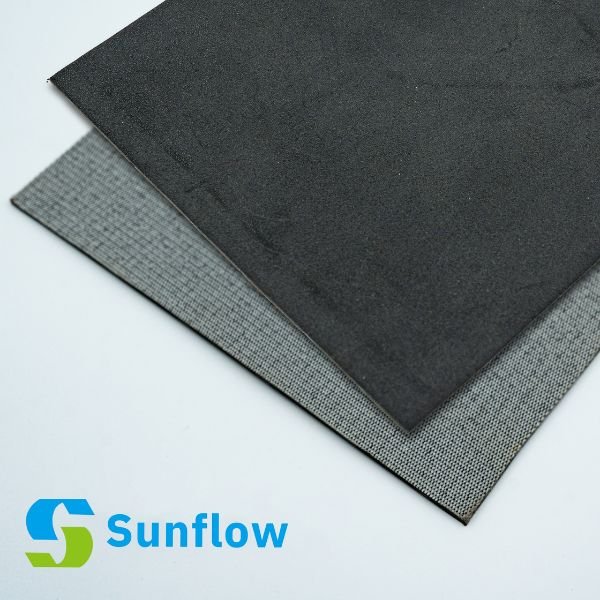

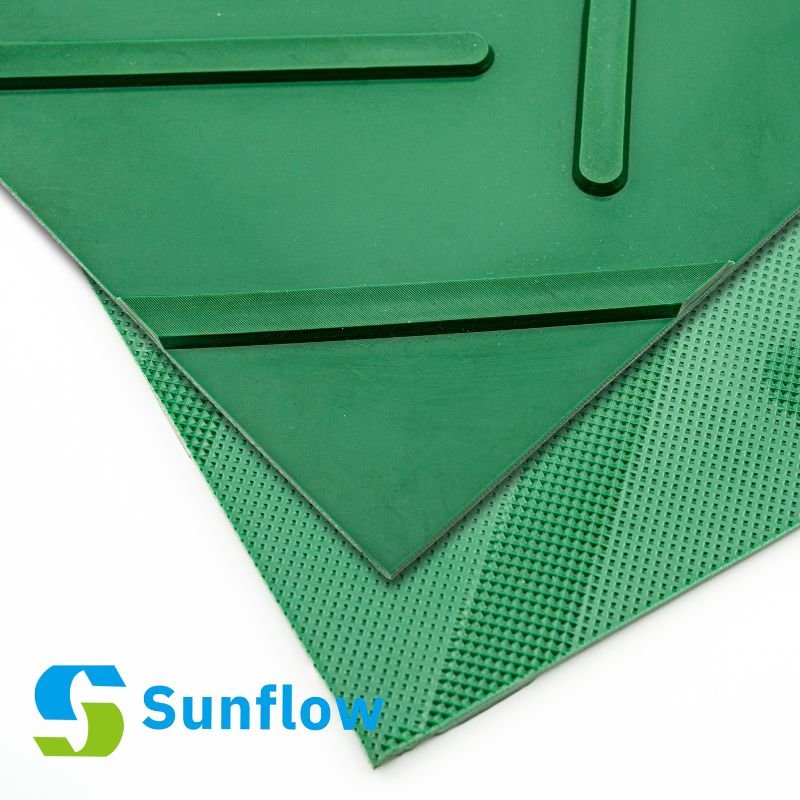

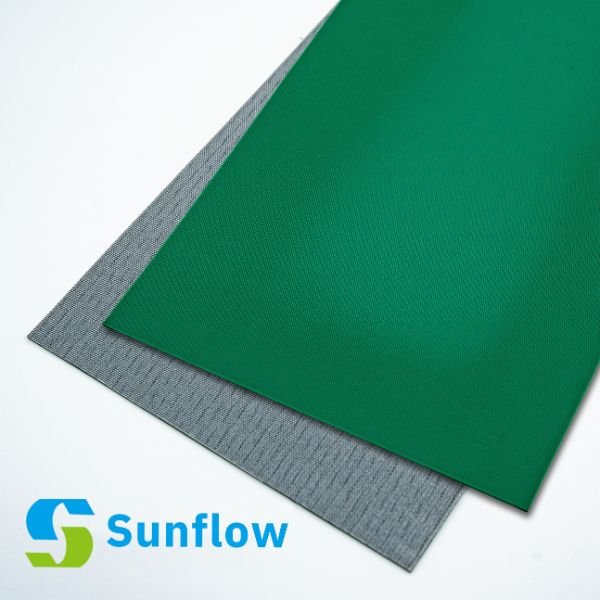

Multi-ply PVC conveyor belts available in various thicknesses and surface patterns for general industrial conveying applications.
Polyurethane-based conveyor belts designed for hygienic, oil-resistant and food-grade conveying environments.
Homogenous Belts
Solid homogeneous conveyor belts engineered for hygienic processing lines requiring seamless and easy-to-clean surfaces.
Silicone Belts
Silicone-coated conveyor belts suitable for high-temperature conveying and specialized thermal processing applications.
PVK Conveyor Belts
Impregnated PVK conveyor belts designed for logistics, sorting systems and high-impact conveying conditions.
Felt Belts
Felt-based conveyor belts suitable for cutting tables, paper handling and delicate surface transport operations.
Cotton Conveyor Belts
Woven cotton conveyor belts designed for lightweight conveying and specialized industrial machinery applications.
Applications by Industry
Explore typical industrial environments where our belt materials are applied.
Food Processing
Belt materials configured for hygienic conveying in bakery, meat, seafood and packaged food production lines.
Logistics & Sorting
Durable belt constructions designed for high-speed parcel handling, distribution centers and automated sorting systems.
Wood Processing
Wear-resistant belt materials suitable for panel transport, sanding lines and timber conveying operations.
Printing & Paper
Precision belt surfaces engineered for paper transport, printing lines and corrugated board processing.
Agriculture & Feed
Conveyor belt materials applied in grain handling, feed processing and agricultural product transfer.
Marble & Stone Industry
Heavy-duty belt materials configured for slab transport, cutting lines and stone polishing systems.
Functional & Surface Features
Surface structures and compound options can be configured to meet specific conveying requirements.
Electrical & Hygiene
Surface Structures
Resistance & Performance
Material Construction Capability
Engineered belt structures configurable by ply construction, surface design and compound formulation.
Multi-Ply Fabric Construction
Available in multiple fabric ply configurations to meet tensile strength and load capacity requirements across different conveying systems.
2–5 ply construction
Polyester / Cotton / Polyamide base fabrics
Reinforced tensile layers available
Thickness & Cover Configuration
Total belt thickness and top cover layers can be configured based on conveying load, abrasion level and application conditions.
Adjustable overall thickness
Customizable top cover thickness
Load and impact adaptation

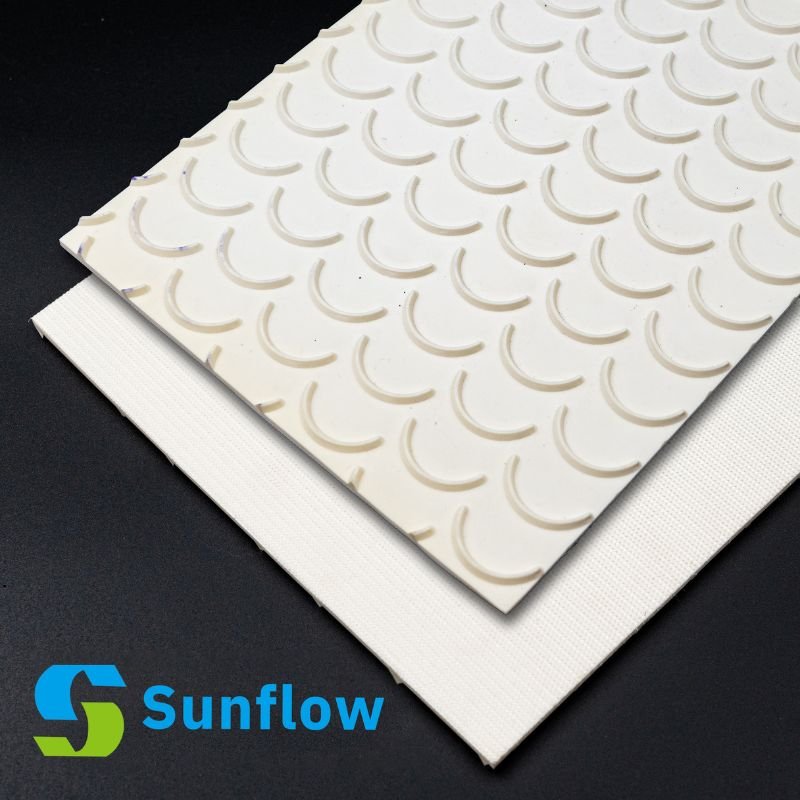

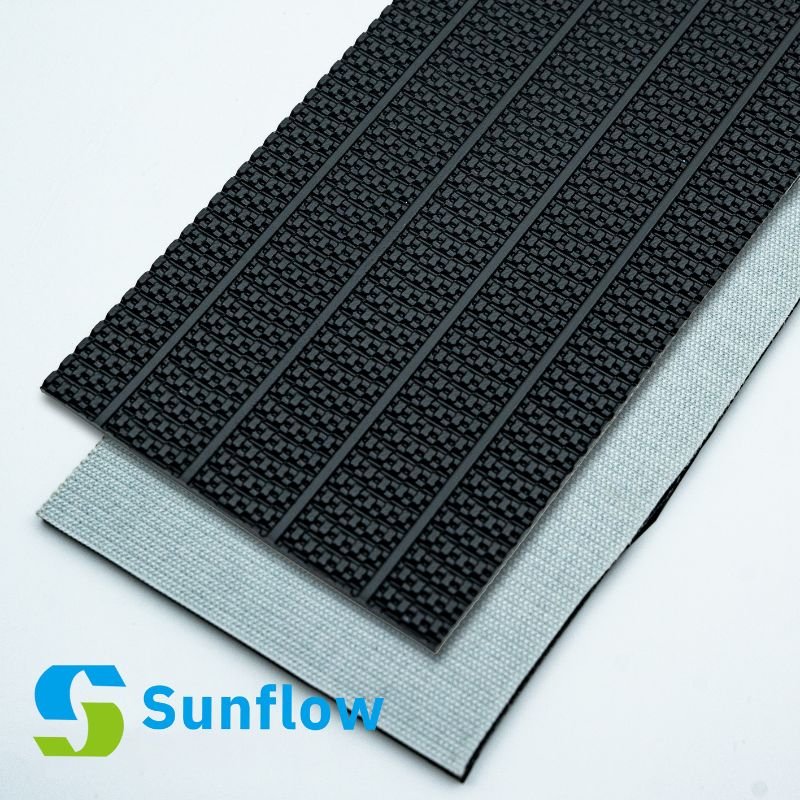

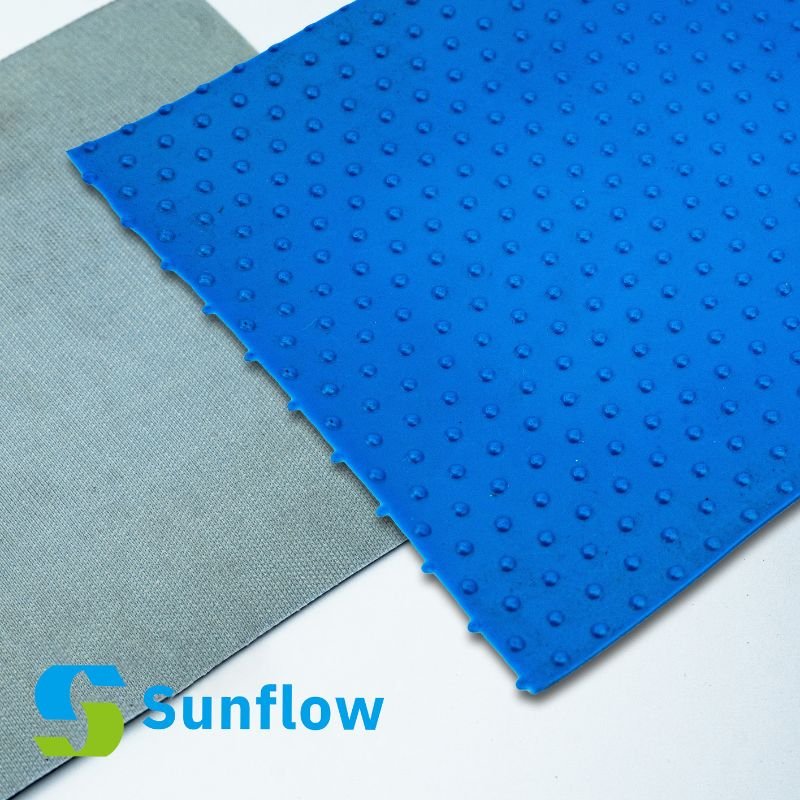

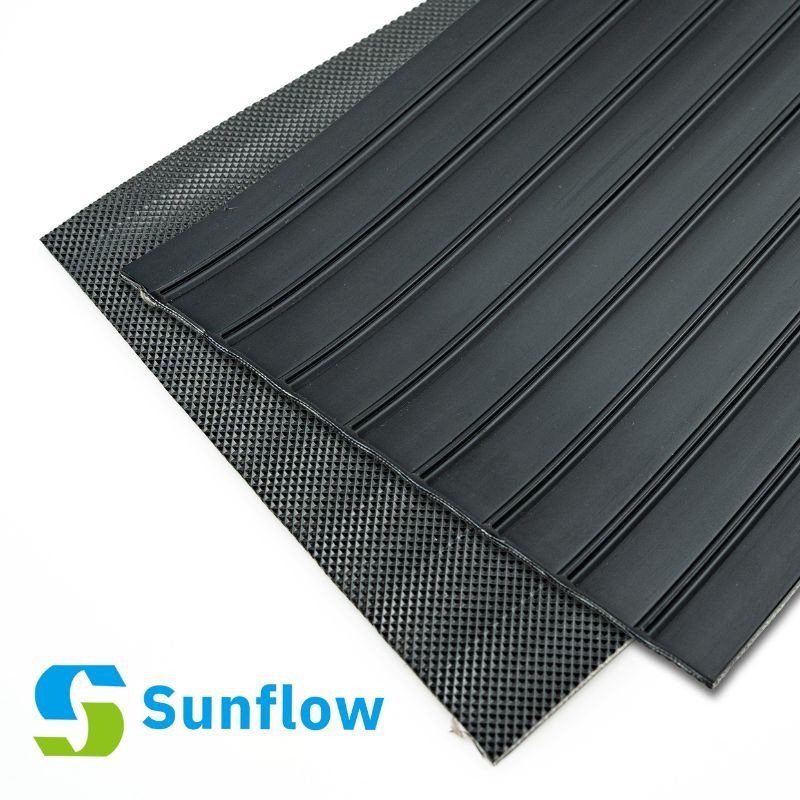

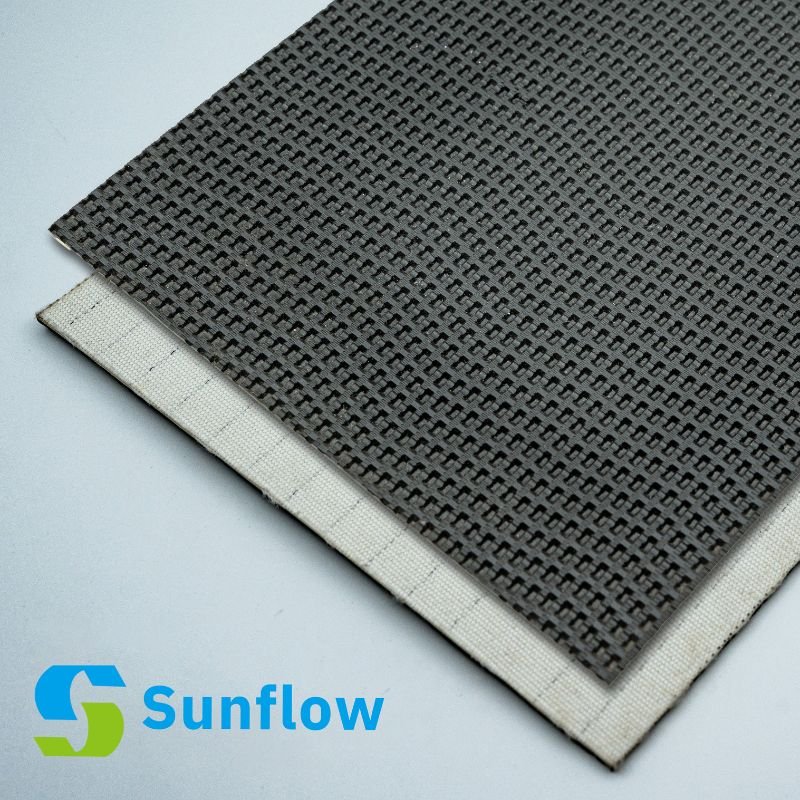

Surface Structure Options
Various surface structures are available to improve grip, stability and material control during inclined or high-speed conveying.
Flat surface

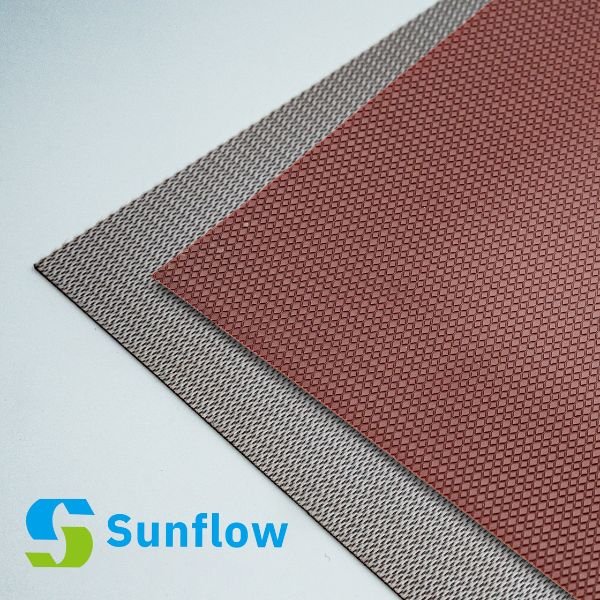

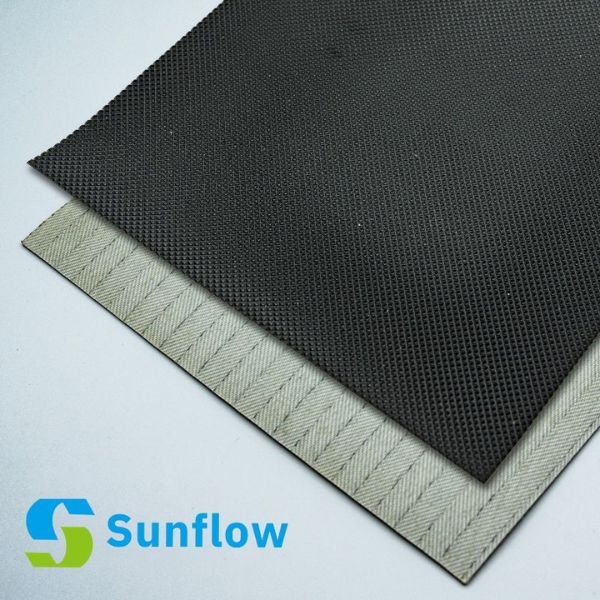

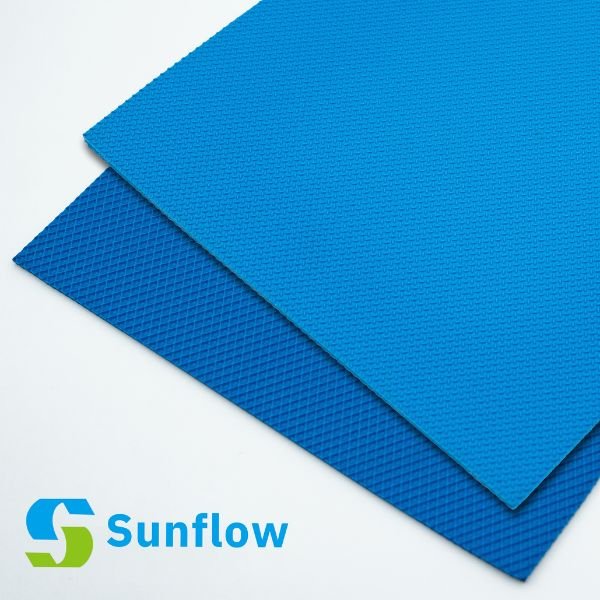

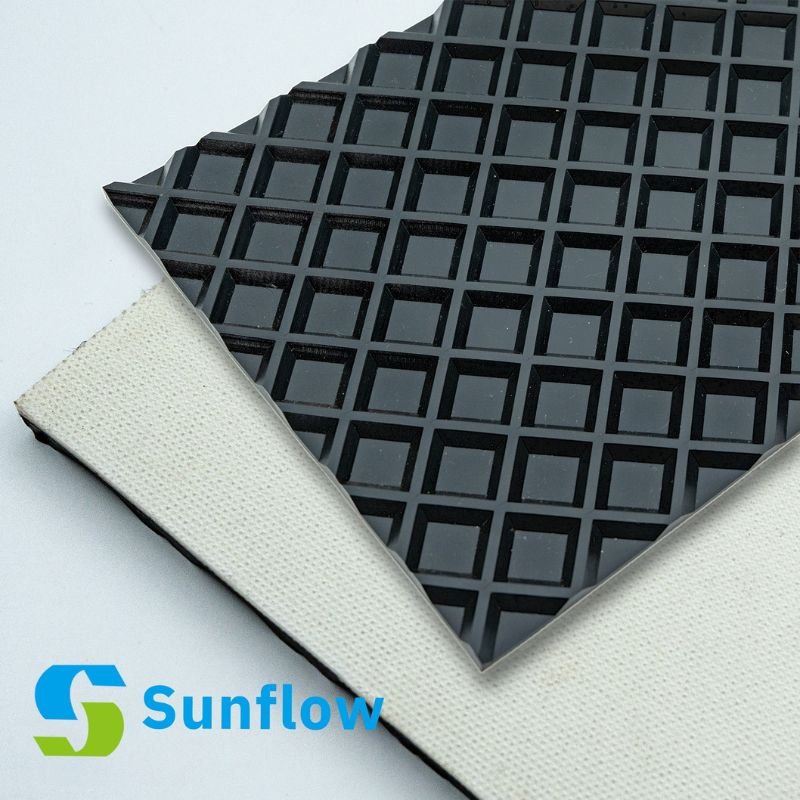

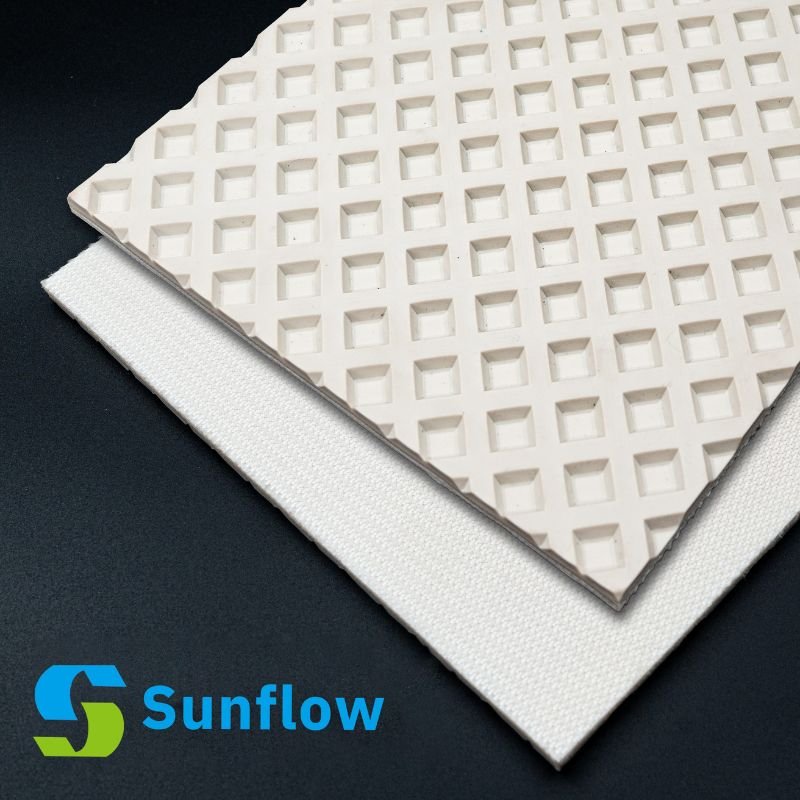

Diamond pattern

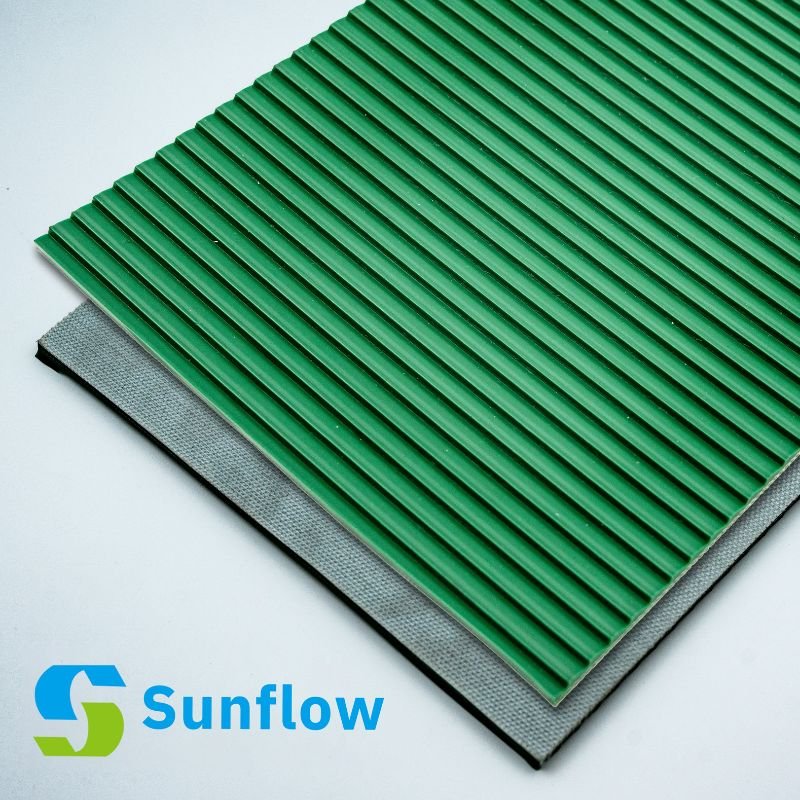

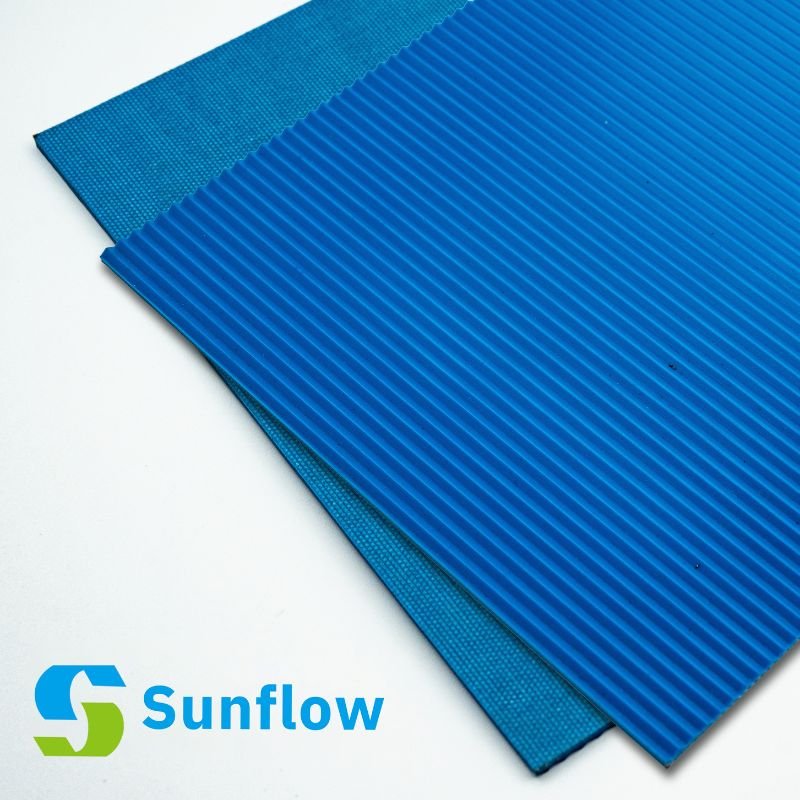

Saw tooth (25.4 / 39.7 mm pitch)
Glossy & matte finish
Compound & Performance Properties
Compound formulations can be configured to meet specific operational requirements including hygiene, conductivity and resistance performance.
Anti-microbial
ESD conductive
Oil resistant
Wear resistant
High temperature resistant (Silica / PVK)

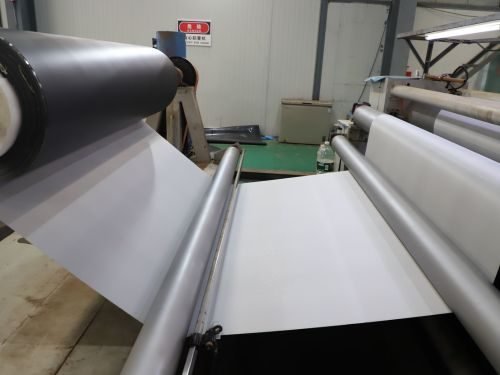

Custom Belt Fabrication Services
Precision cutting and fabrication services tailored to industrial conveyor applications.
Cutting to Width & Length
Custom belt cutting according to specified dimensions and roll requirements.
Endless Hot Splicing
Precision hot vulcanized jointing for seamless belt operation.
Mechanical Fastener Joint
Metal or plastic fasteners for quick installation and maintenance.
Cleats Welding
Welded cleats for inclined conveying applications.
Guide Installation
V-guides for tracking stability and alignment.

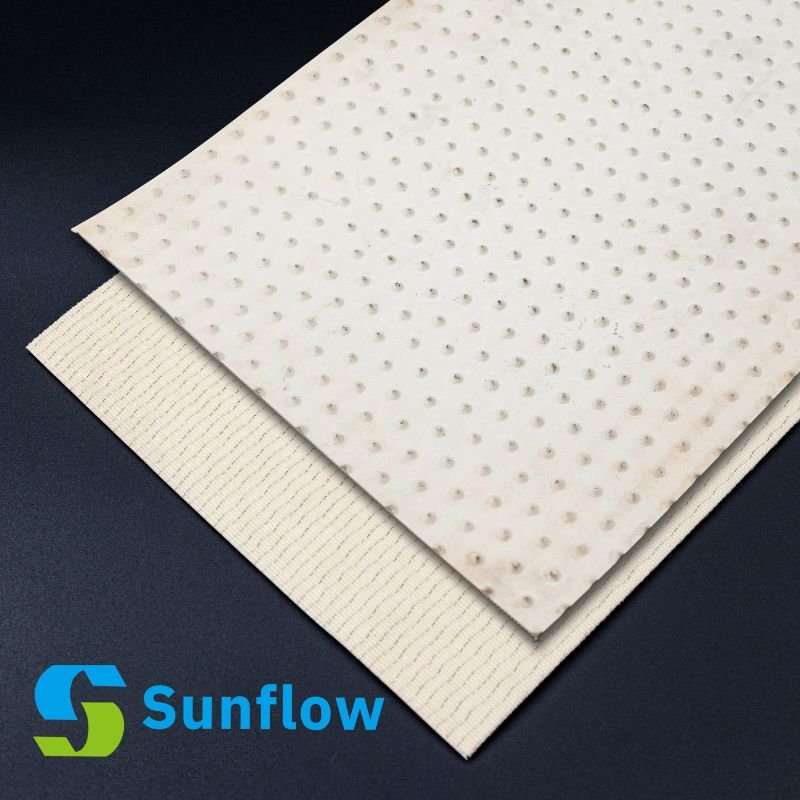

Perforation & Edge Sealing
Custom perforation patterns and reinforced belt edges.
Recommended Belt Configurations by Industry
Typical belt constructions are recommended based on industry-specific conveying conditions and operational requirements.
Food Processing
For hygienic conveying of meat, bakery, and packaged food products.
Available in food-grade PVC, PU and homogeneous materials with smooth or anti-bacterial surfaces.
Logistics & Sorting
Designed for parcel handling and automated sorting lines.
PVK and high-strength multi-ply belts suitable for high-speed, impact and abrasion conditions.
Wood Processing
Suitable for sawdust, timber boards and panel transport.
Available with rough-top or diamond patterns for improved grip.
Printing Industry
Used in paper transport and printing machinery.
Anti-static surface options available to reduce static accumulation.
Tobacco Industry
Conveyor belt materials resistant to fine dust and lightweight bulk material transport.
Agriculture Industry
Suitable for grain and lightweight agricultural product conveying.
Oil-resistant and textured surface options available.
Specification Overview
The following specification ranges represent general construction capabilities across PVC, TPU, PVK and related belt materials.
| Parameter | General Range / Options |
|---|---|
| Material Type | PVC / TPU / PVK / Homogenous |
| Number of Plies | 2 – 5 ply construction |
| Fabric Base | Polyester / Cotton / Polyamide |
| Total Thickness | Approx. 1.5 mm – 8 mm |
| Top Cover Thickness | Configurable based on application |
| Belt Width | Custom cut to specified width |
| Roll Length | Supplied in rolls (length configurable) |
| Surface Type | Flat / Glossy / Matte |
| Surface Pattern | Diamond / Small Diamond / Saw Tooth (25.4 / 39.7 mm pitch) |
| Color Options | Green / White / Blue / Black / Custom |
| Temperature Range | Approx. -10°C to +80°C (varies by compound) |
| Surface Resistivity | Anti-static / ESD conductive options available |
| Oil Resistance | Optional oil-resistant compound |
| Hygiene Options | Anti-microbial surface available |
Frequently Asked Questions
Answers to common technical and ordering questions about belt materials and customization.
What information is required to select the correct belt material?
To recommend a suitable belt structure, the following information is typically required:
Conveyed material type
Belt width and required thickness
Incline angle (if applicable)
Load weight and operating speed
Environmental conditions (temperature, oil, moisture)
Based on these parameters, ply construction, surface structure and compound formulation can be defined.
What ply constructions are available?
Belt materials are available in 2–5 ply fabric constructions depending on tensile strength and load requirements.
Fabric bases may include polyester, cotton or polyamide, selected according to application demands and flexibility requirements.
Can the belt be supplied in custom width and length?
Yes. Belt materials can be supplied in roll form or cut to specified width and length according to system requirements.
Precision cutting ensures dimensional consistency for installation and further fabrication.
What surface structures are available?
Multiple surface options are available, including:
Flat surface
Diamond pattern
Small diamond pattern
Saw tooth (25.4 mm / 39.7 mm pitch)
Surface geometry is selected based on grip requirement, incline angle and product stability during conveying.
Are anti-static or ESD conductive options available?
Yes. Anti-static and ESD conductive configurations are available.
Conductive properties may be achieved through compound formulation or conductive fabric integration depending on resistance requirements.
Is the belt suitable for food processing applications?
Food-grade and anti-microbial surface options are available for applications requiring hygienic conveying conditions.
Material selection should be defined based on contact requirements and cleaning procedures.
What joining methods are supported?
Both hot vulcanized endless splicing and mechanical fastener joints are supported.
The joining method is selected based on installation conditions, downtime tolerance and operational load.
Can additional fabrication such as cleats, guides or perforation be provided?
Yes. Additional fabrication services include:
Cleat welding
V-guide installation
Custom perforation patterns
Edge sealing
Fabrication solutions are defined according to system layout and conveying design.
