PVC Conveyor Belt
Sunflow PVC conveyor belts are engineered with polyester fabric reinforcement and durable PVC coating, ensuring stable and efficient conveying in light to medium duty applications.
Product Overview
Sunflow PVC conveyor belts are manufactured with multi-ply polyester fabric carcass and high-quality PVC coating, providing a reliable balance of strength, flexibility, and wear resistance. Designed for light to medium duty conveying, these belts ensure stable operation and consistent material handling performance. The lightweight structure allows easy installation and efficient energy usage, while the PVC surface offers good resistance to abrasion and common industrial conditions. Sunflow belts are suitable for applications such as logistics, packaging, and general processing lines where durability and cost efficiency are required.
Key Features
Wear-Resistant Surface
Sunflow PVC conveyor belts feature durable surface coatings that provide consistent resistance to abrasion in continuous conveying environments.
Stable Running Performance
The multi-ply fabric structure ensures smooth belt tracking and stable operation across various conveying systems.
Lightweight & Flexible
Designed with a lightweight construction, Sunflow belts allow easy installation and efficient operation without excessive load on equipment.
Oil & Chemical Resistance
The PVC coating offers resistance to common oils and industrial chemicals, supporting reliable performance in demanding conditions.
Low Noise Operation
Engineered for smooth contact and movement, the belt helps reduce operational noise in high-speed conveying lines.
Customization
Sunflow belts can be customized with cleats, guides, perforations, and other processing options to match specific application requirements.

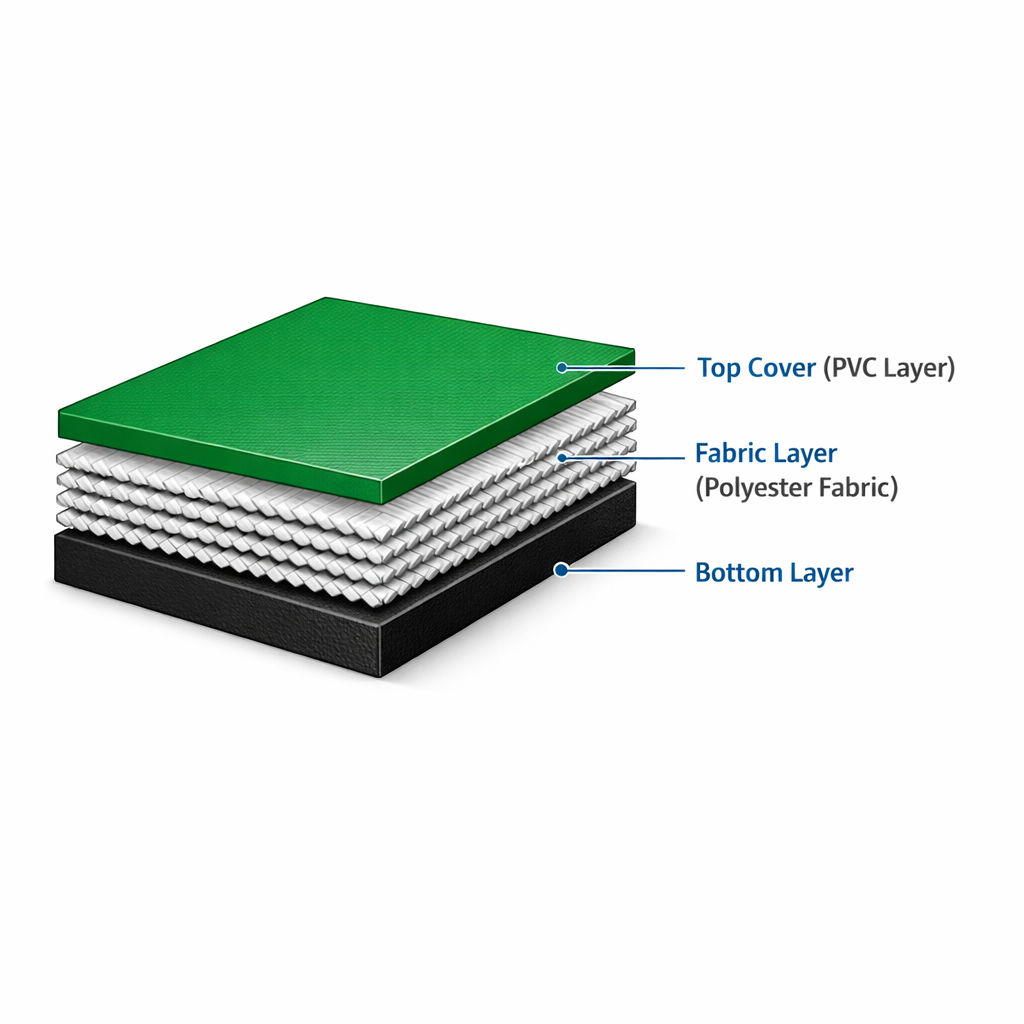

PVC Conveyor Belt Structure
Sunflow PVC conveyor belts are constructed with a multi-layer design that ensures durability, flexibility, and stable conveying performance across various applications.
Top Cover (PVC Layer)
The top layer is made of high-quality PVC material, providing resistance to abrasion, impact, and common industrial conditions while ensuring smooth material contact.
Reinforcement Layer (Polyester Fabric)
The core of the belt consists of multi-ply polyester fabric, delivering tensile strength, dimensional stability, and reliable load support.
Bottom Layer
The bottom layer ensures proper friction with conveyor systems, supporting stable tracking and consistent belt movement.
Technical Specifications
| Parameter | Specification |
| Material | PVC + Polyester Fabric |
| Belt Type | Multi-ply Conveyor Belt |
| Thickness Range | 0.5 – 6.0 mm |
| Number of Plies | 1 – 4 |

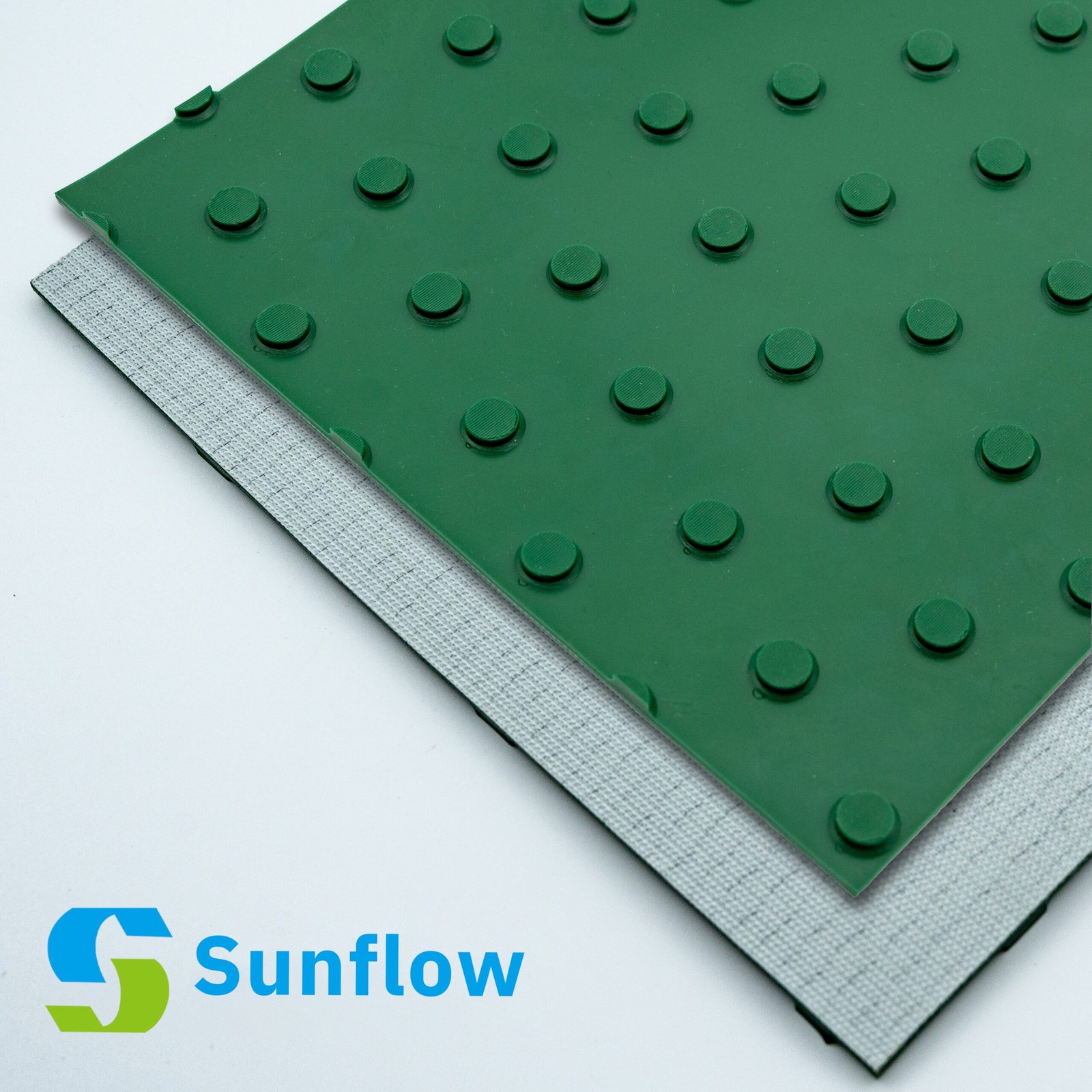

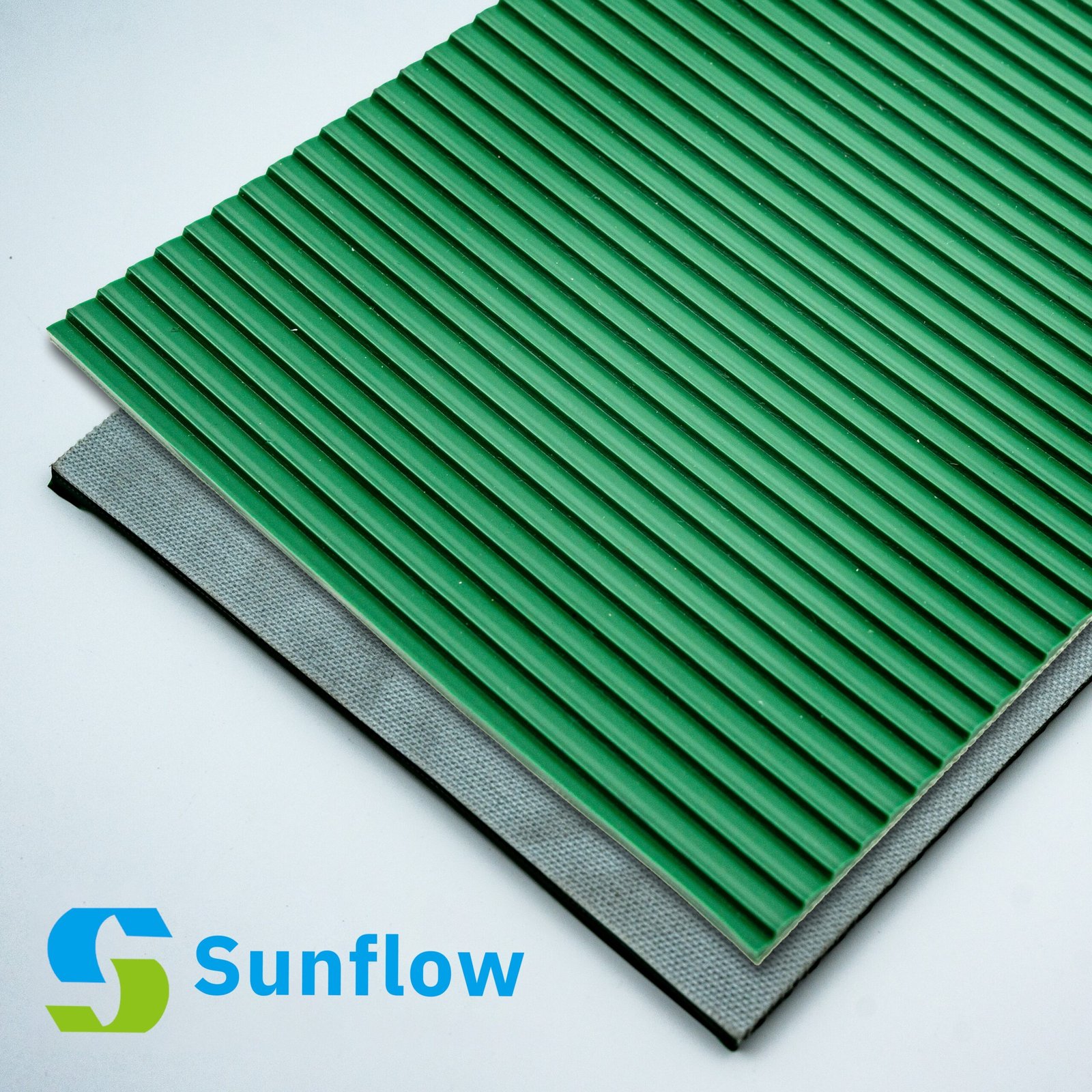

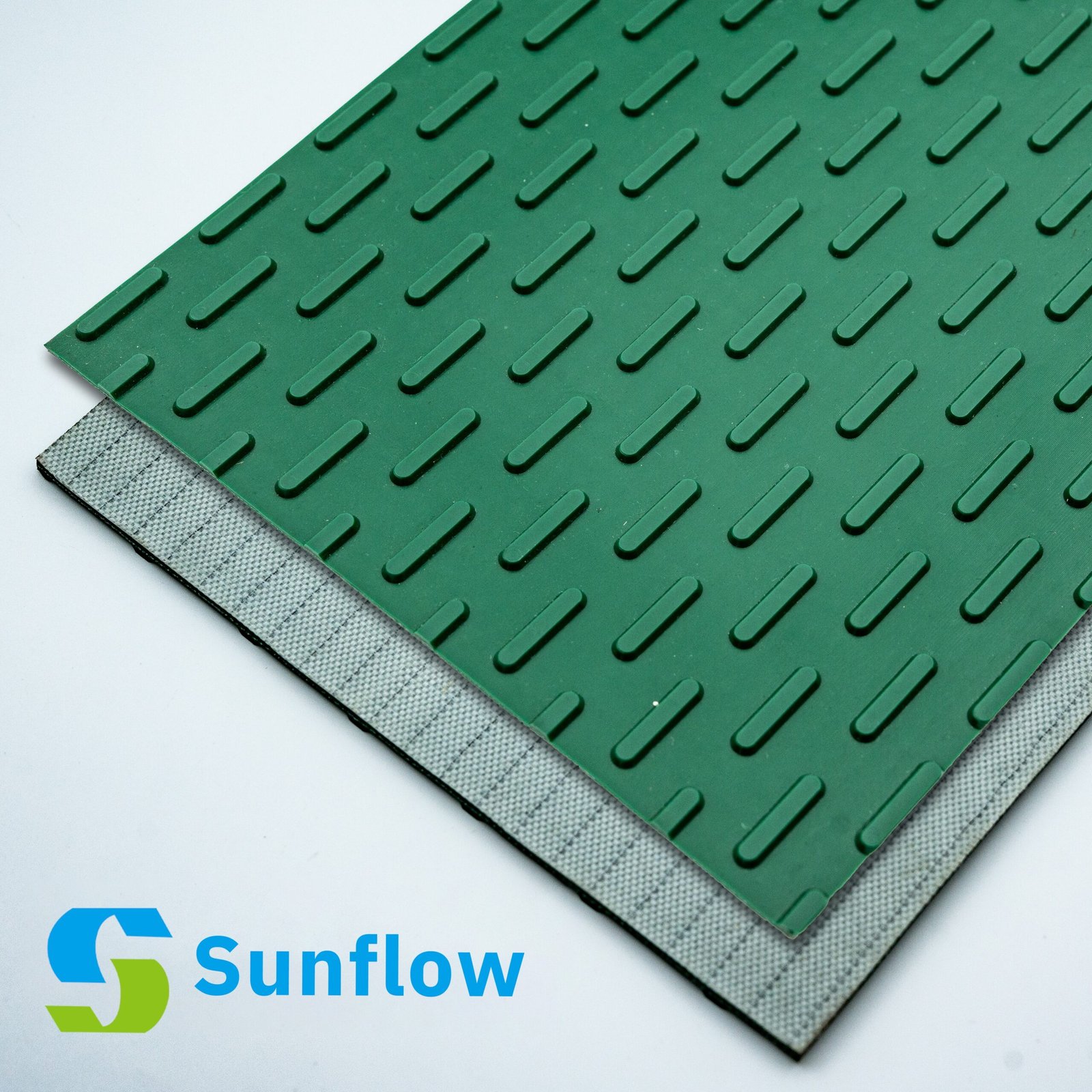

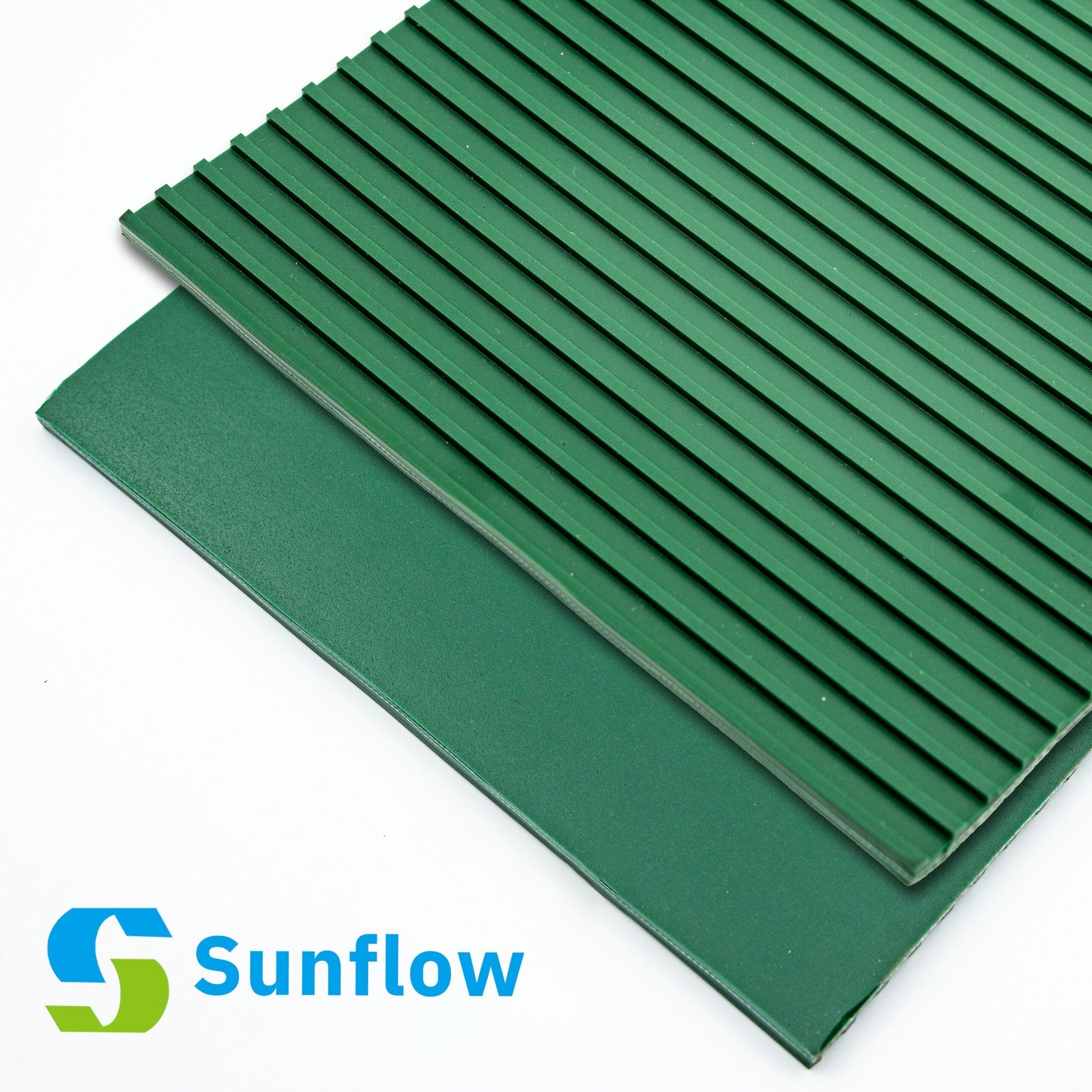

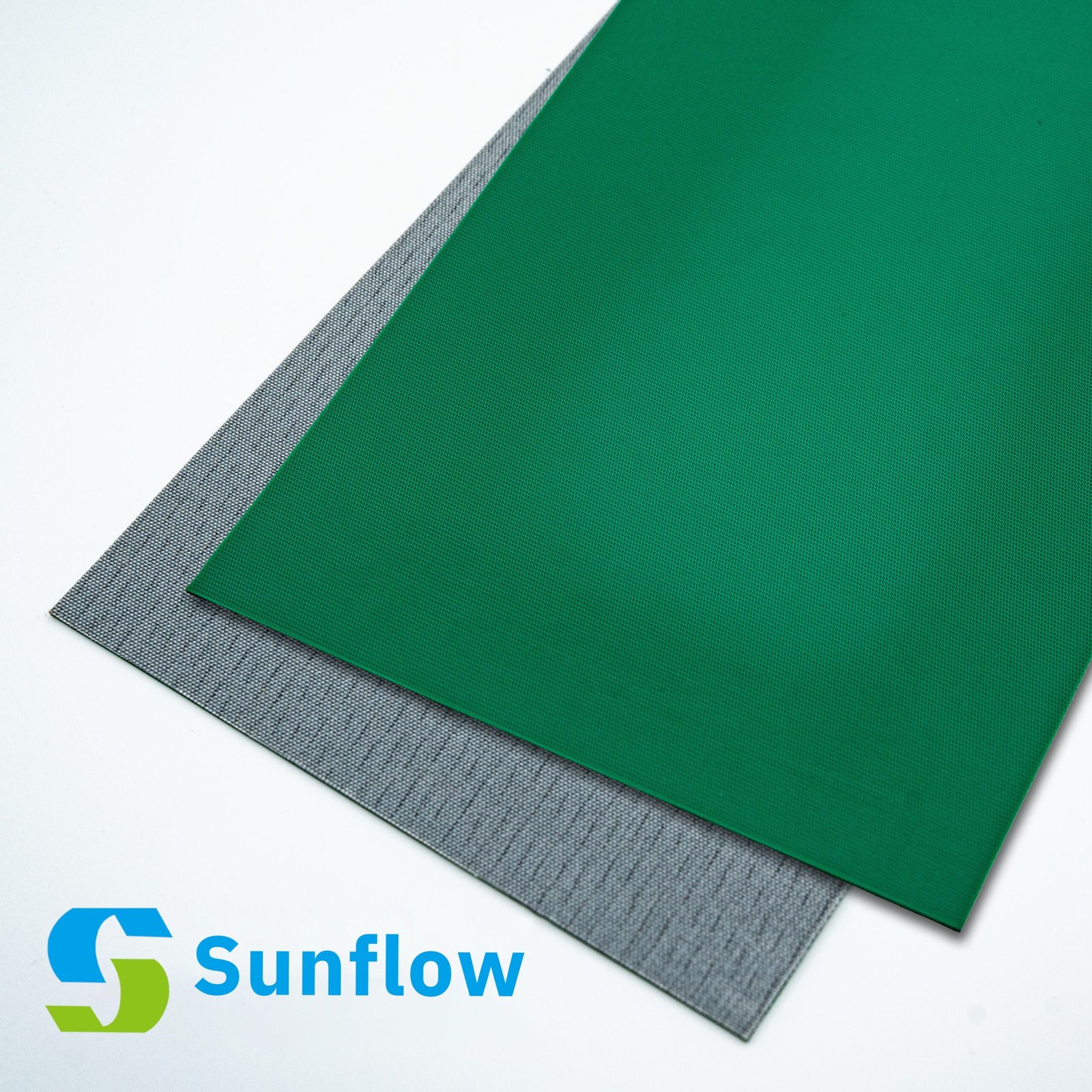

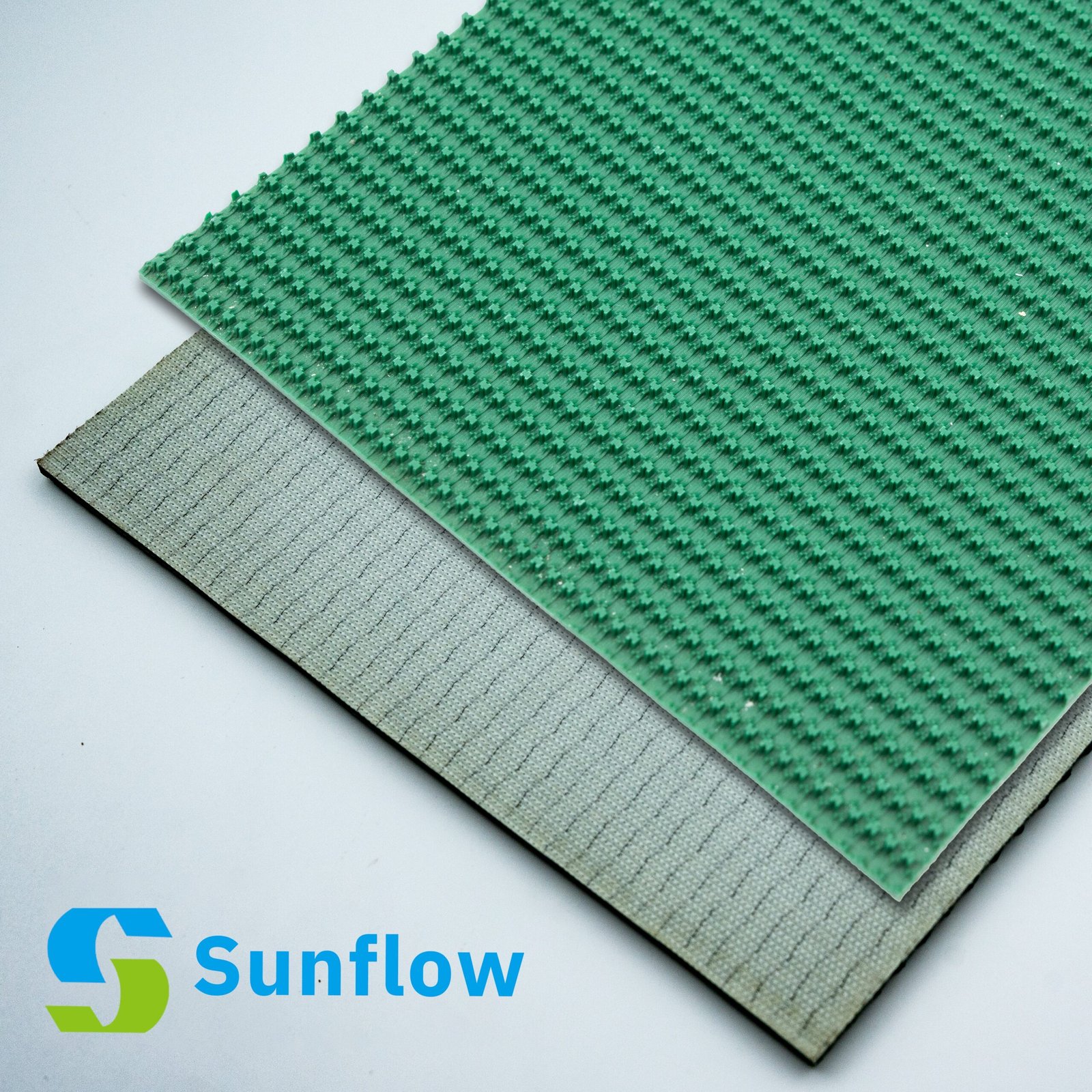

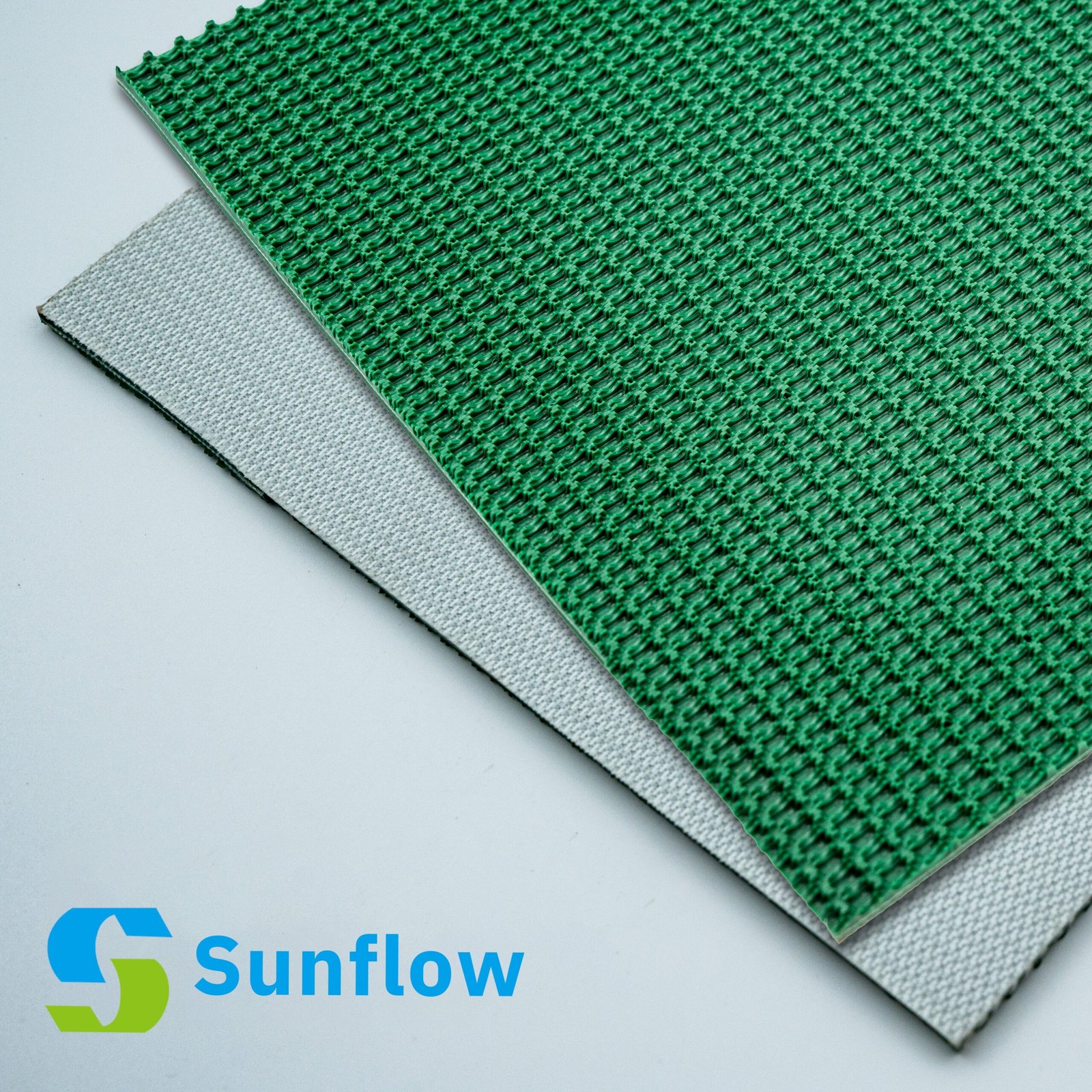

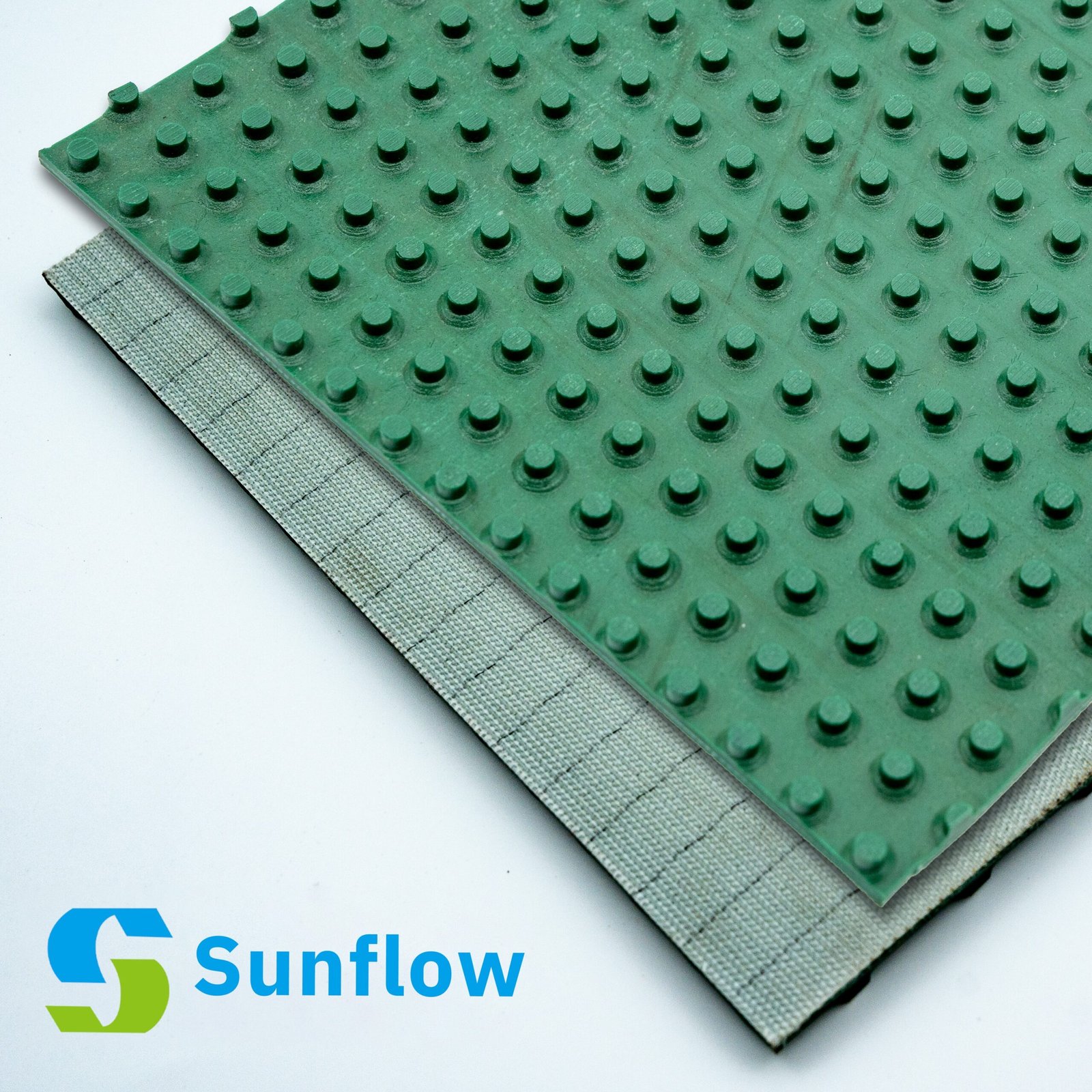

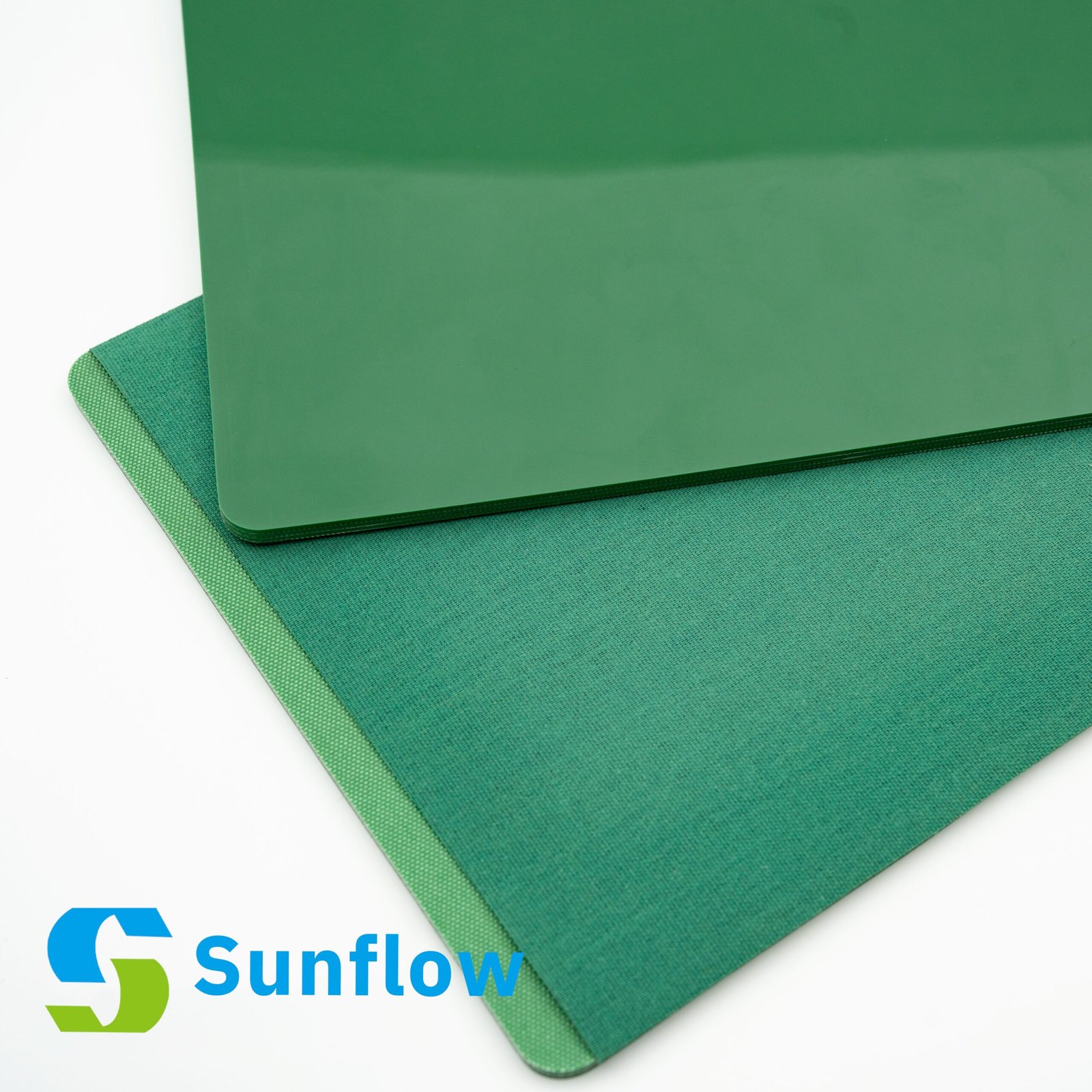

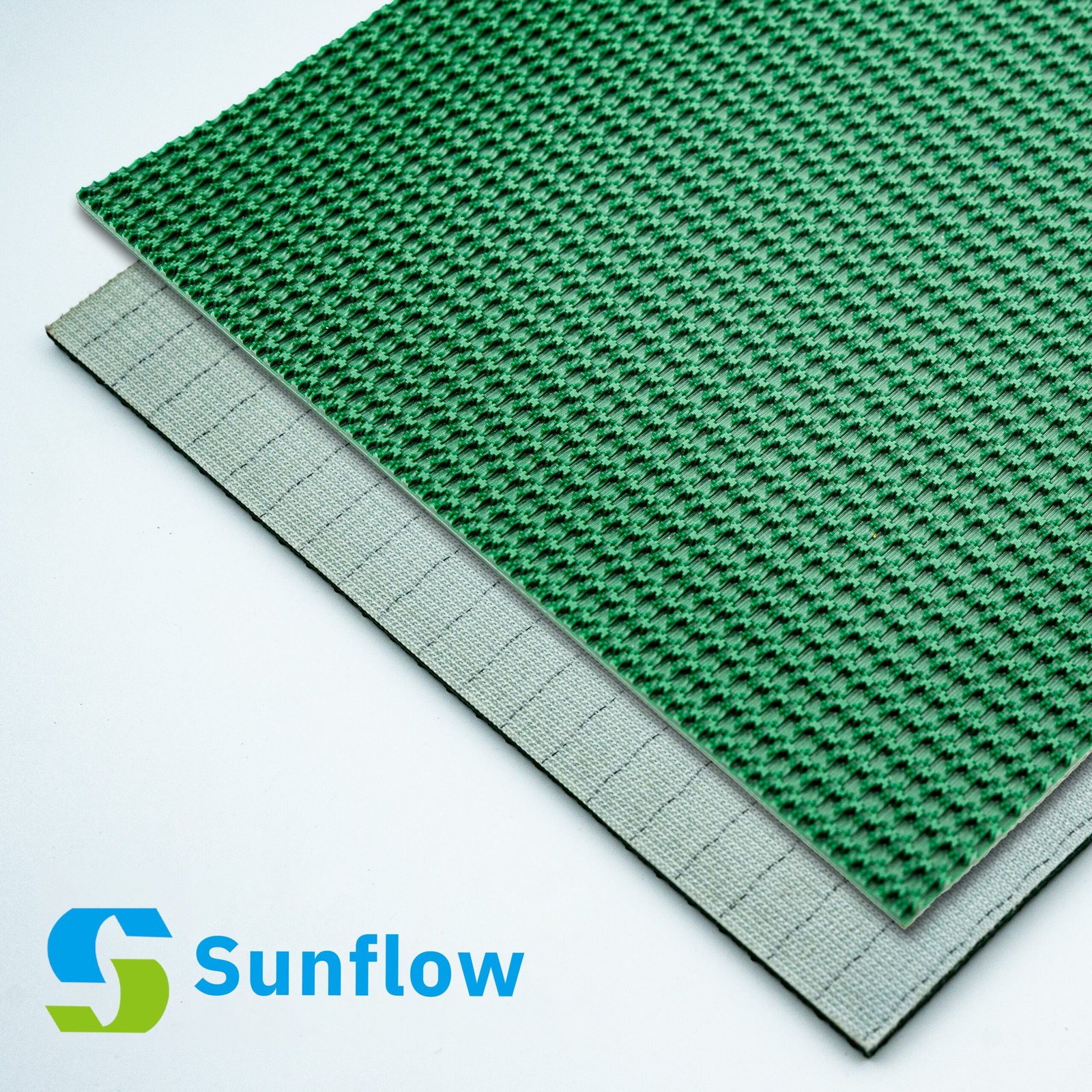

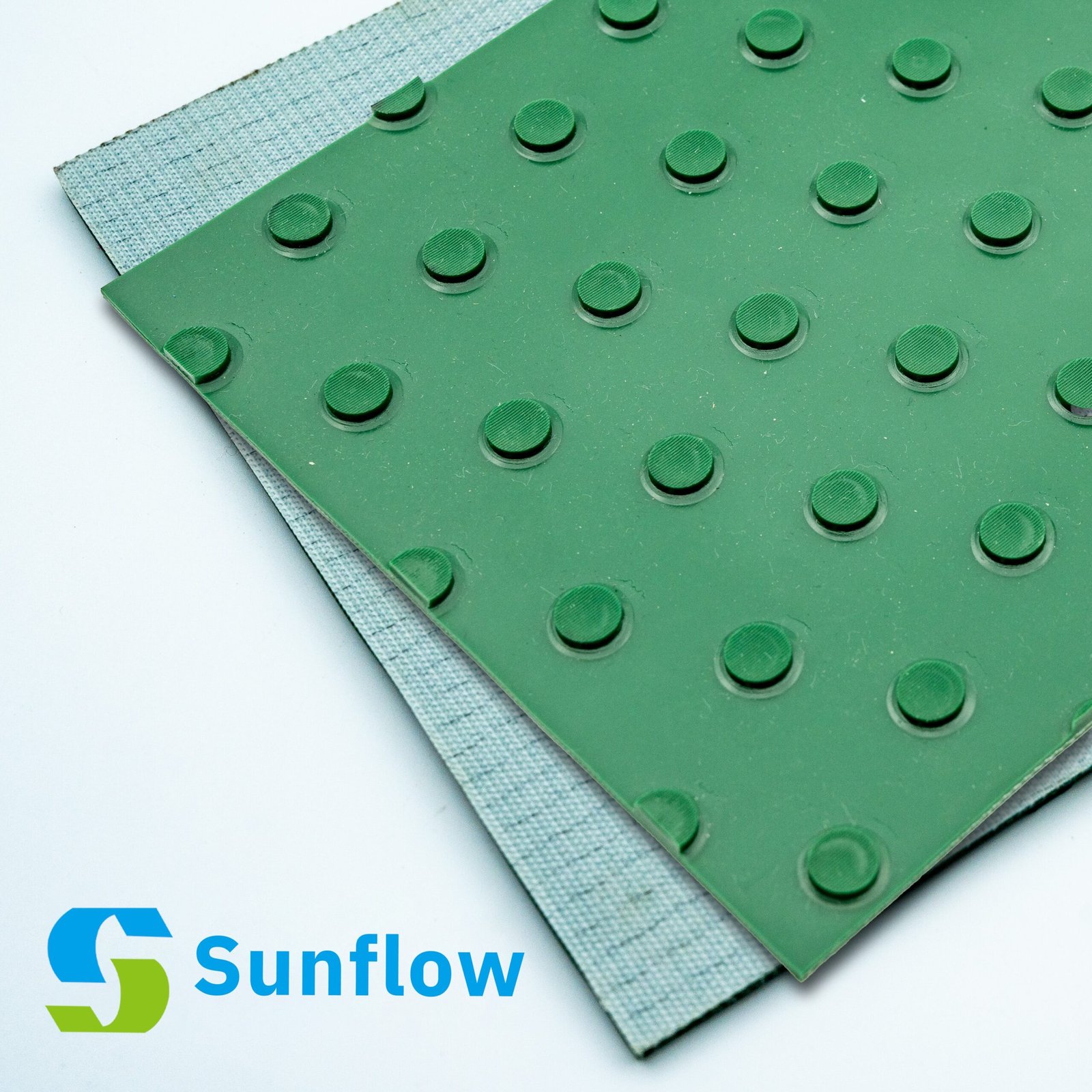

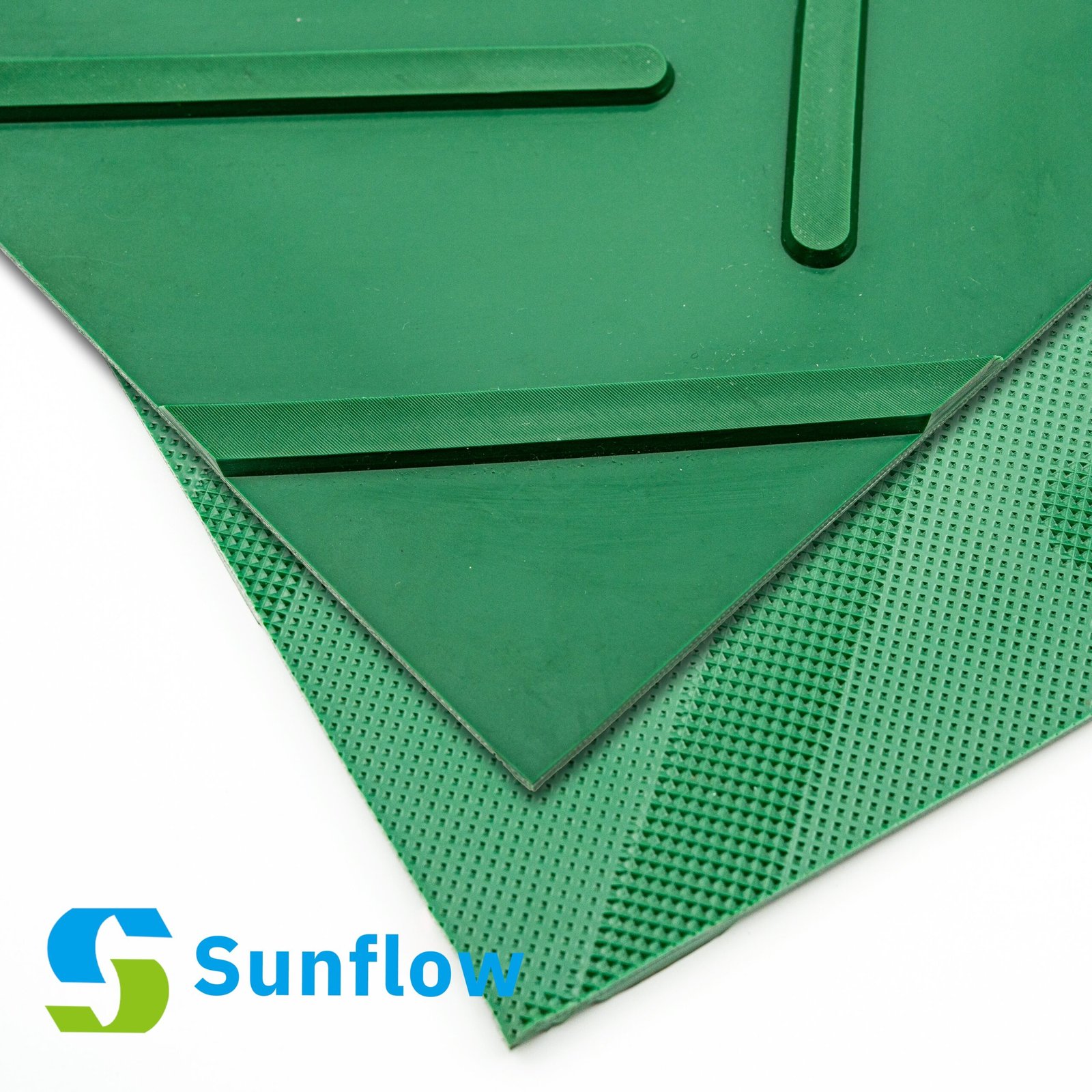

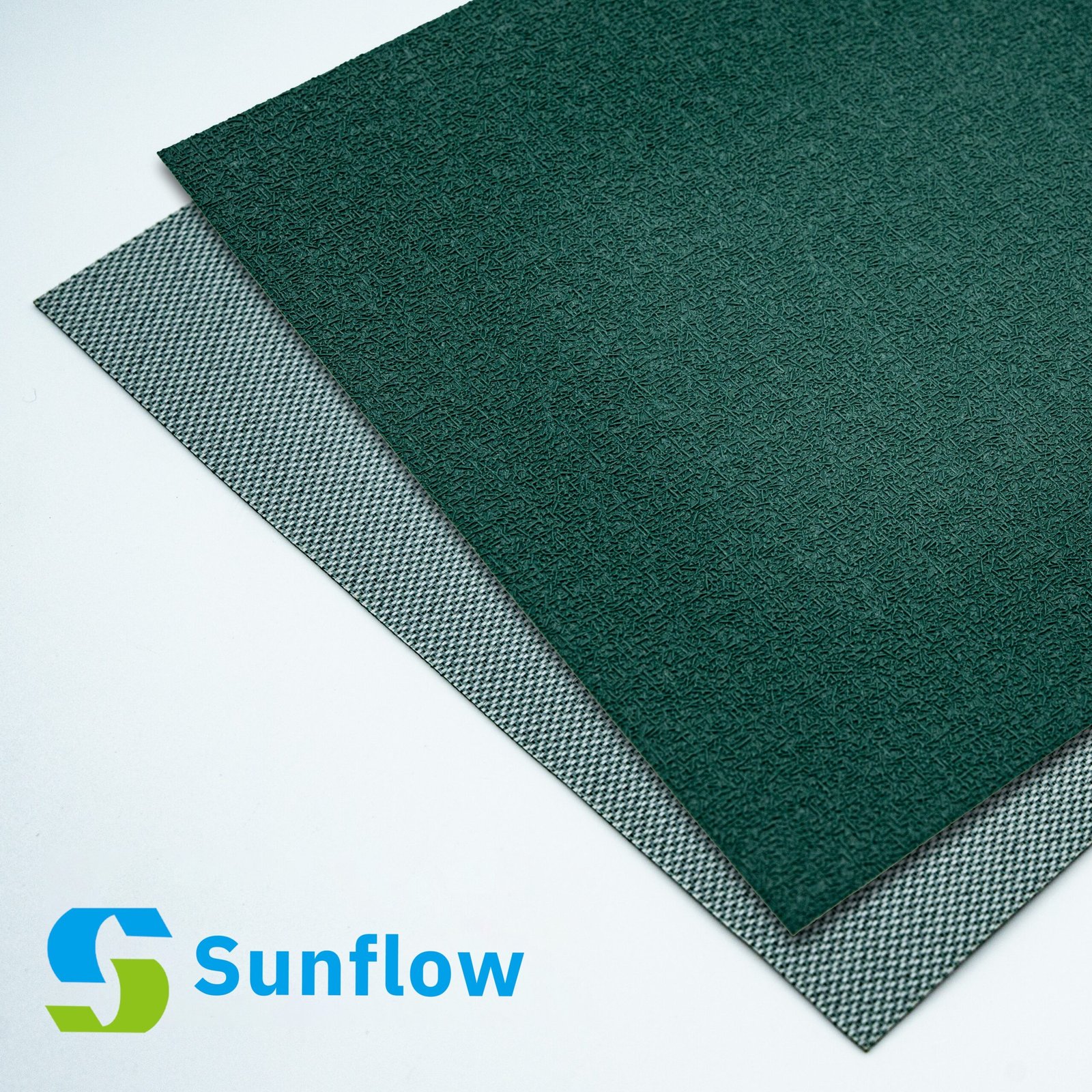

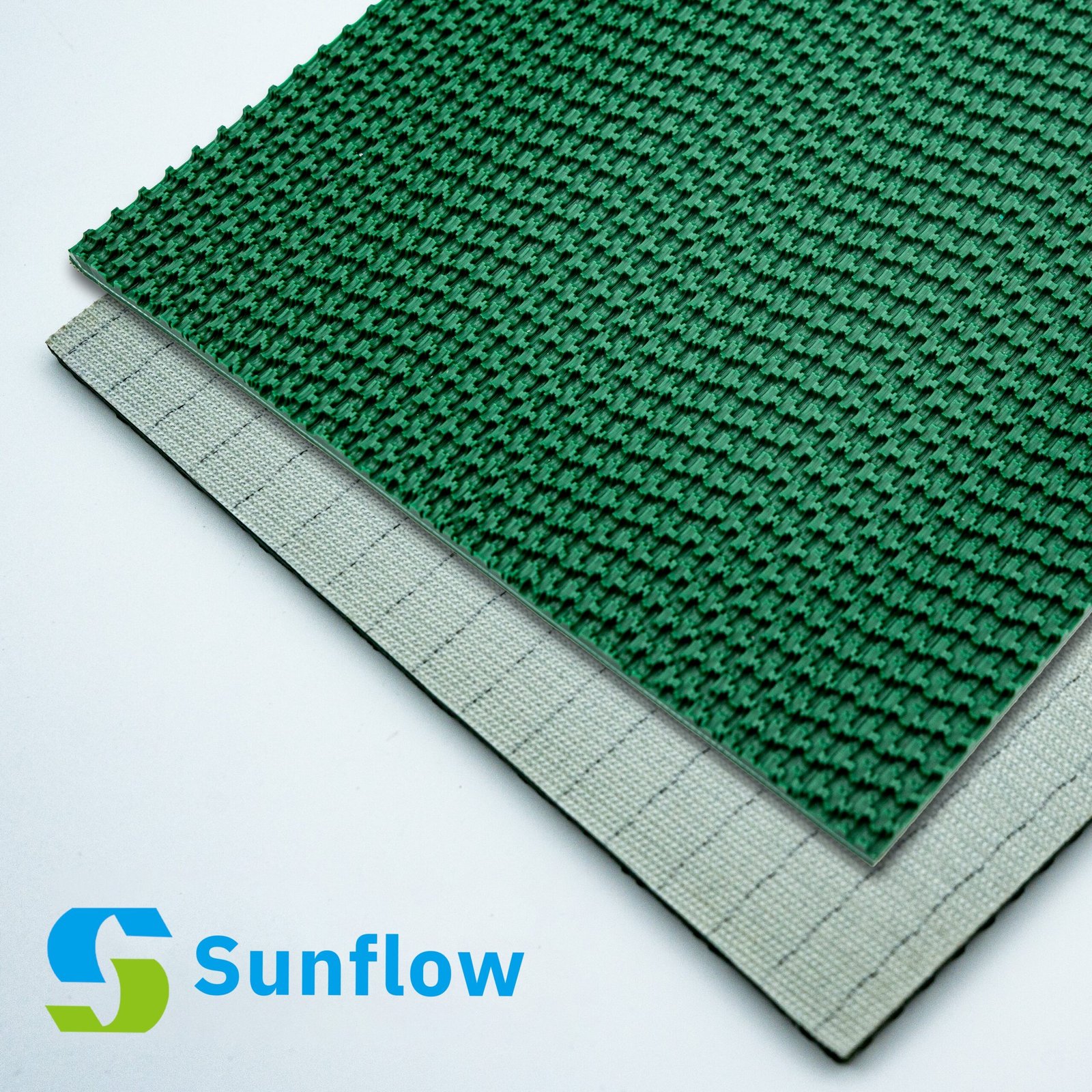

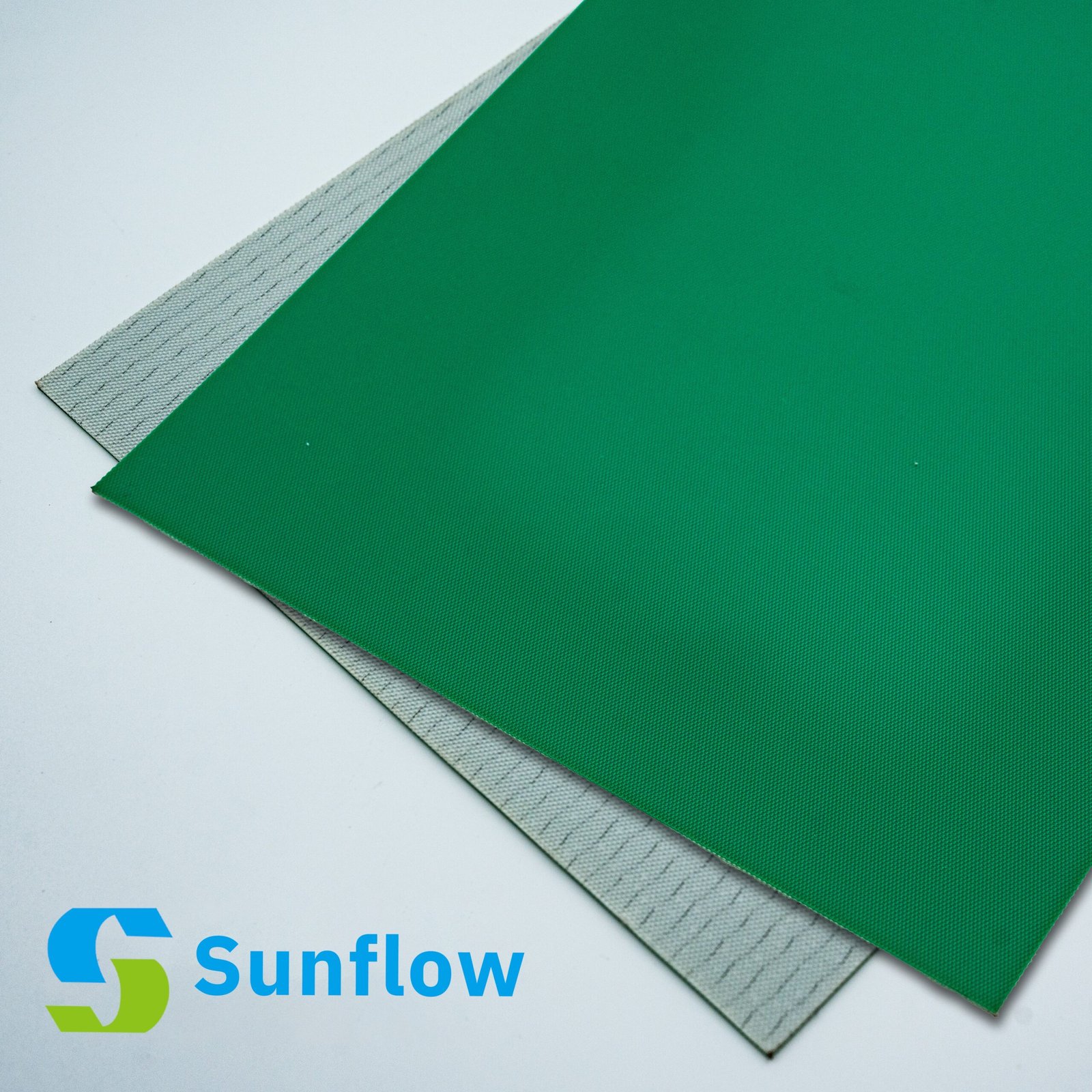

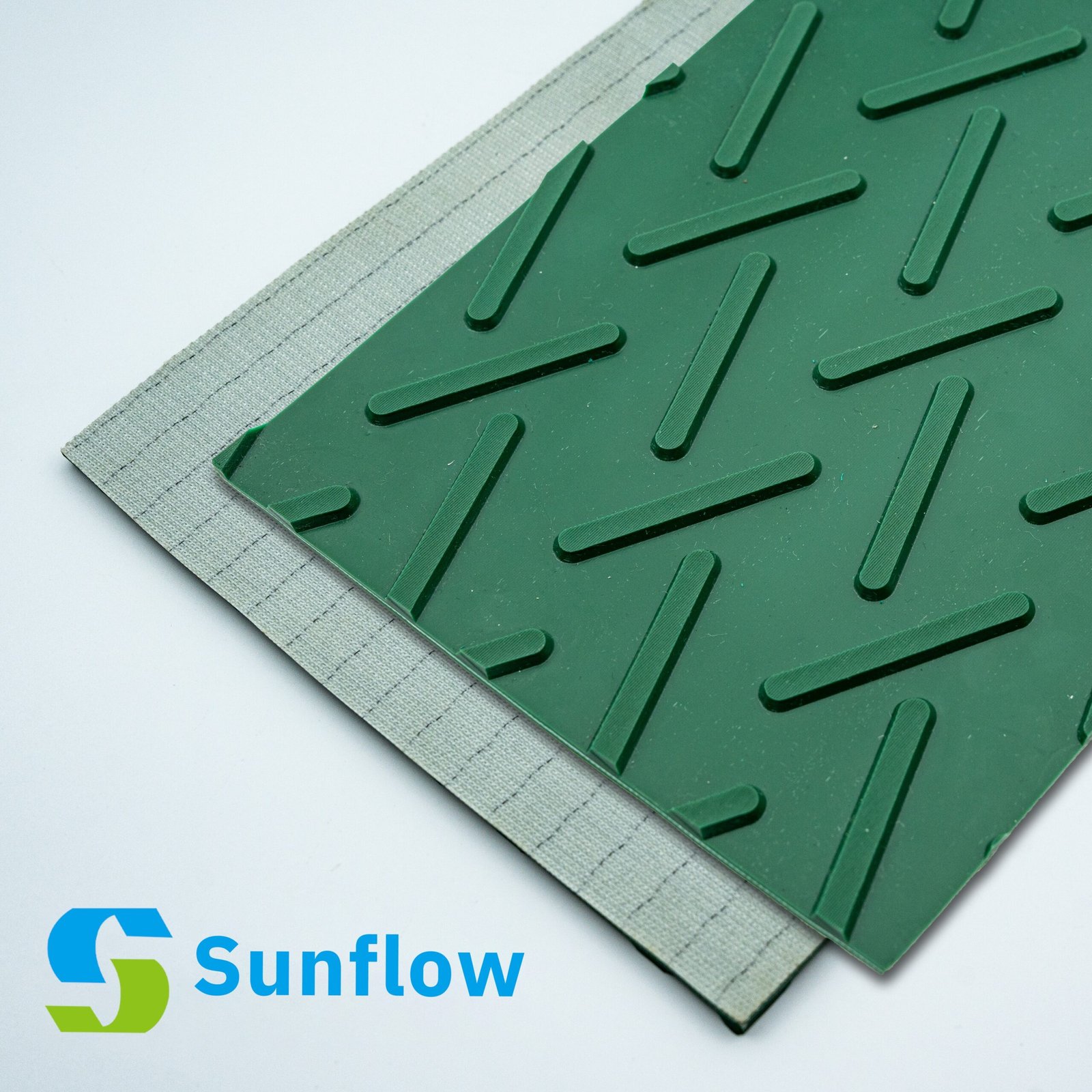

| Surface Patterns | Smooth / Matte / Rough Top / Diamond / Saw Tooth |
| Top Cover Hardness | 60 – 90 Shore A |
| Belt Width | Up to 3000 mm |
| Working Temperature | -10°C to +80°C |
| Tensile Strength | 80 – 300 N/mm |
| Minimum Pulley Diameter | 10 – 120 mm |
| Elongation at Break | ≤ 1% |
| Color Options | Green / White / Black / Blue |
| Food Grade Option | Available |
| Special Properties | Oil-resistant / Anti-static / Flame-retardant (optional) |
Application

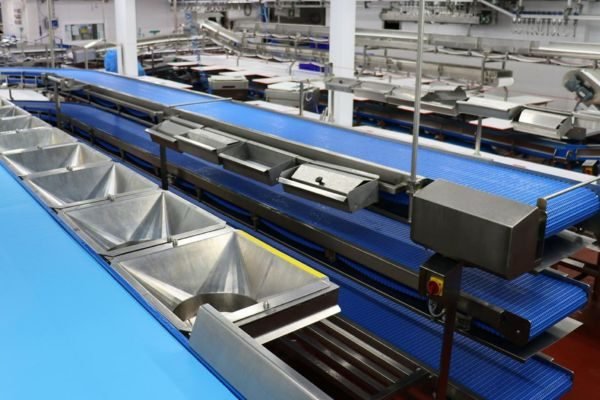

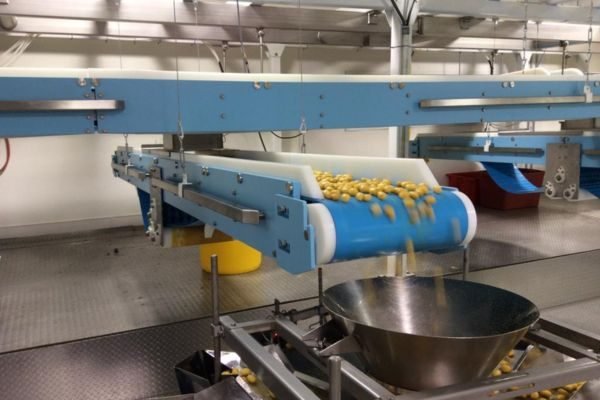

Food Processing
Used in food handling and processing systems, with options available for hygienic and easy-to-clean surfaces.

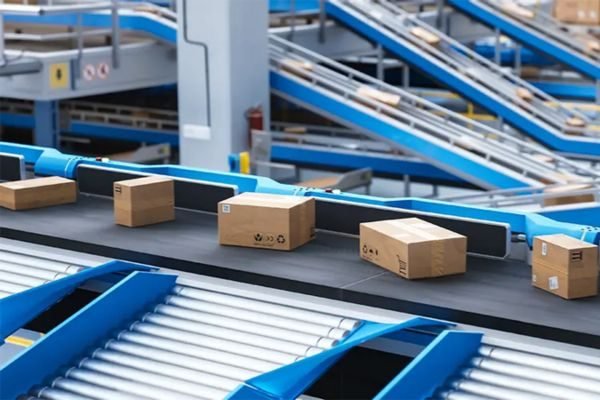

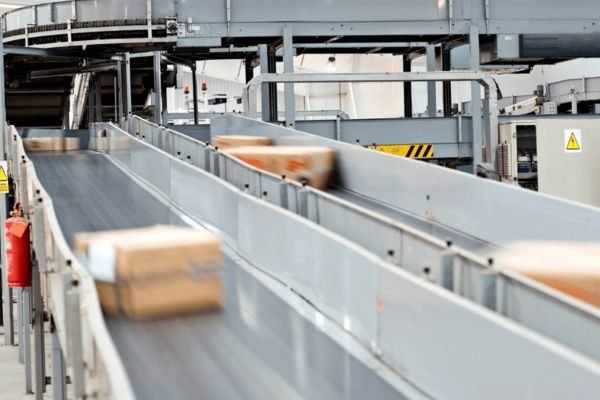

Logistics & Warehousing
Sunflow PVC conveyor belts are widely used in sorting systems, distribution centers, and warehouse conveying lines requiring stable and continuous operation.

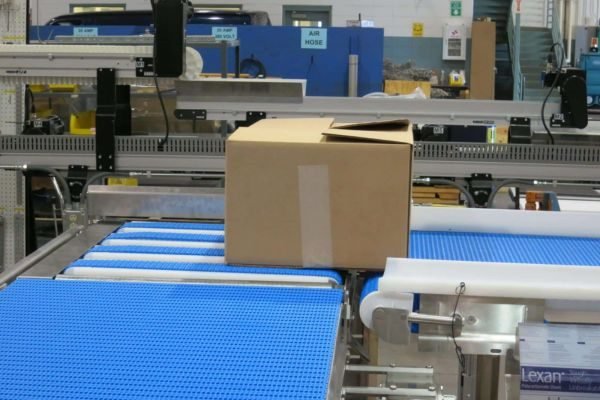

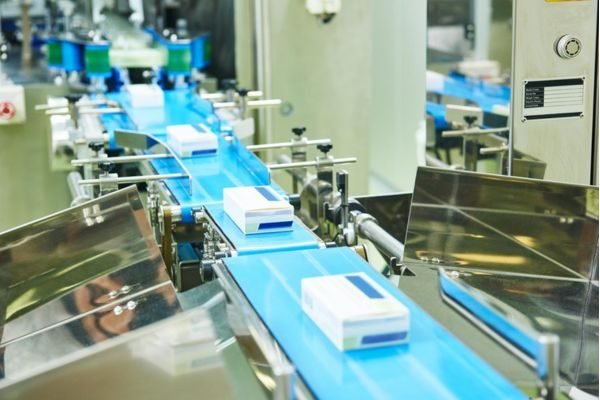

Packaging Industry
Suitable for packaging lines where smooth conveying and consistent product positioning are essential.
Printing Industry
Provides stable material transport for paper, labels, and packaging materials in printing and converting processes.
Electronics Manufacturing
Ideal for light-duty conveying in electronic assembly lines where precision and clean operation are required.
General Industrial Conveying
Applicable for various light to medium duty conveying tasks across different industrial environments.
FAQ
What is a PVC conveyor belt used for?
Sunflow PVC conveyor belts are mainly used for light to medium duty conveying in industries such as logistics, packaging, food processing, printing, and general manufacturing where stable and continuous operation is required.
What is the difference between PVC and PU conveyor belts?
PVC conveyor belts are typically used for general industrial conveying due to their cost efficiency and durability, while PU conveyor belts are more suitable for food-grade applications requiring higher hygiene standards and oil resistance.
What thickness of PVC conveyor belt should I choose?
The selection depends on the application, load, and conveyor system design. Lightweight applications typically use 1–2 mm belts, while heavier or inclined conveying may require 3–5 mm belts. Sunflow can recommend suitable specifications based on your requirements.
Can the belt be customized in size and structure?
Yes. Sunflow provides customized PVC conveyor belts in terms of width, length, thickness, surface pattern, and fabrication options such as cleats, guides, and perforation.
What surface patterns are available?
Sunflow PVC conveyor belts are available in various surface patterns including smooth, matte, rough top, diamond, and saw tooth, depending on the required friction and conveying conditions.
What is the maximum belt width you can supply?
Sunflow PVC conveyor belts can be manufactured with widths up to 3000 mm. Custom widths can be produced according to specific application requirements.
What is the working temperature range?
Standard Sunflow PVC conveyor belts are suitable for operating temperatures ranging from -10°C to +80°C, depending on the material and structure.
Do you provide endless splicing or installation support?
Yes. Sunflow offers endless splicing and other fabrication services to ensure the belt is ready for installation and stable operation on your conveyor system.
